● The new XIUI3.0 OS features microcomputer control,
programmable operations, and direct drive by a variable
frequency brushless motor for precise speed control.
● A 7" wide-angle LCD touch screen is for digital input and
simple to operate. It can display set and run parameters in real
time. The all-steel housing is treated with corrosion-resistant
orange peel fine wrinkles showing full lines, featuring an
industrial human-machine design that reflects a sense of safety
while being visually appealing, and allowing a high recognition
rate.
● The products utilize imported fluorine-free refrigerating
compressor units (refrigerant R404a) that meet the environmental
requirements, with pre-cooling function and a wide temperature
control range: -20℃ to +40℃, quickly reaching the set
temperature. The chamber is embedded with copper pipes that
comply with national standards for strong hot and cold exchange
capabilities and thus can ensure constant-temperature
centrifugation.
● They feature multiple audio/visual early warning protection
functions for overspeed, over temperature, imbalance, wrong
operation, overcurrent, overvoltage, and anti-pinch. The
fluorosilicone rubber sealing ring, resistant to hydrogen, oil, acids

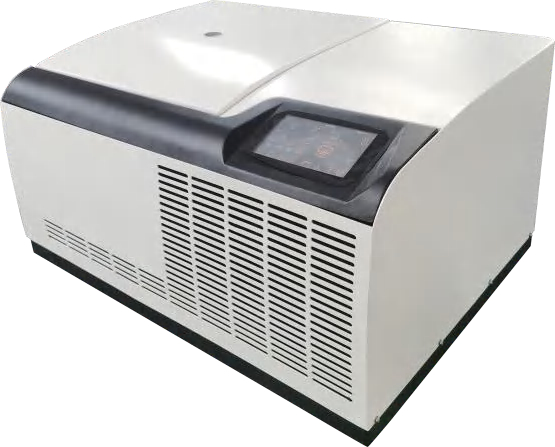

7120BR Benchtop High Speed Large Capacity
Refrigerated Centrifuge
Major Fields of Application
With an extraordinary experimental throughput of up to 4×750mL, this centrifuge is an ideal option for high-throughput applications. It
can fast and efficiently freeze and centrifuge materials, thus being a great convenient tool for biochemistry, healthcare, food safety, life
sciences, agricultural and forestry sciences, blood banks, etc.
and alkalis, is capable of long-time use at -55°C - +200°C
temperatures. The aesthetically pleasing and hermetical inner
panel of the cabin door can dually prevent aerosol spillage. The
304 stainless steel seamless corrosion-resistant centrifuge
chamber and steel cylinder sleeve are designed with a sound
absorbing air duct.
● The door cover has an electronic lock and electric support rod,
allowing for smooth and stable automatic one-button opening and
closing. In case of shutdown or power outage, it can be powered
by a battery to automatically open the cover plate. The patented
anti-pinch function can prevent injuring fingers by hasty
operations.
● The Bluetooth/Type C interface function is optional for short
range control via mini-programs, facilitating system upgrades and
experimental data downloads.
● There are 10 gears for acceleration/deceleration and three
stage damping for shock absorption, ensuring stable sample
operation without resuspension. They can store 99 groups of
programs and be programmable according to user needs for
point control, timing, differential timing, density, and gradient
centrifugation, thus meeting diverse experimental requirements.● The hidden drainage function allows for easy expulsion of
condensate water with a gentle squeeze, thereby preventing
motor failure due to condensate water and extending the
centrifuge's lifespan.
● The optional rotor has an auto recognition function and can
automatically load and lock rotor parameters; parameters may be
modified during operation without the need to stop, and current
parameters may be automatically saved.
● Multi-specification forged aerospace aluminum rotors (fix
angle rotors only) and a variety of optional polyamide fiber
adapters, suitable for 0.2mL to 750mL centrifuge tubes or
reagent bottles; able to centrifuge all types of MTP microplates,
PCR plates, cell culture plates and deep well plates.
● Patents owned: Herexi Network Intelligent Control System
(Software Copyright Registration No. 9873780), horizontal
centrifuge (ZL 2021 30608966.4), benchtop centrifuge (ZL 2021
30605592.0), centrifuge (ZL 2018 3030691.0), and anti-pinch
and object protection device for instrument covers (ZL 2022
20790897.2);
● These products are supported by certifications including ISO
9001 (2015) and ISO 13485 (2016) and CFDA registration and
production qualification.
